Dye Penetrant Testing (DPT) in NDT – Complete Guide

“Dye Penetrant Testing (DPT) is a widely used Non-Destructive Testing method to detect surface-breaking defects in metals, plastics, and ceramics. Simple, cost-effective, and highly reliable, it helps industries ensure safety and quality without damaging the material.”

8/22/20251 min read

What is DPT?

Dye Penetrant Testing (DPT), also known as Liquid Penetrant Testing (LPT), is a Non-Destructive Testing (NDT) method used to detect surface-breaking defects such as cracks, porosity, leaks, and seams in both ferrous and non-ferrous materials.
It is widely used because it is simple, inexpensive, and effective for quality control.

Principle of DPT

DPT works on the principle of capillary action:

A liquid penetrant is applied on the surface.
The penetrant seeps into surface defects (like cracks).
After removing excess penetrant, a developer is applied, which draws out the penetrant trapped in defects.
Defects become visible under natural light or UV light (fluorescent method).

ects, not subsurface.
Requires clean and smooth surface.
Cannot be used on porous materials (like cast iron).
Chemical handling requires safety measures.

Standards & Codes

ASTM E1417 – Standard practice for penetrant testing.
ISO 3452 – International standard for liquid penetrant inspection.

Types of Penetrant

Visible (Red Dye Penetrant) – inspected under white light.
Fluorescent Penetrant – inspected under UV light (more sensitive).

Step-by-Step Procedure

Surface Preparation – Clean the material surface (oil, dirt, rust removed).
Application of Penetrant – Apply dye penetrant and allow dwell time (5–30 minutes).

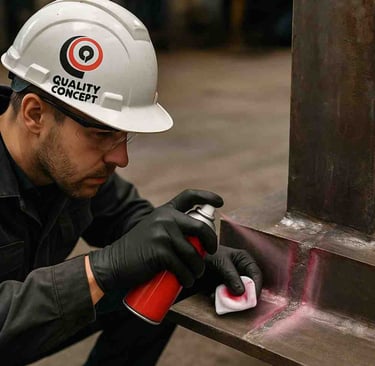

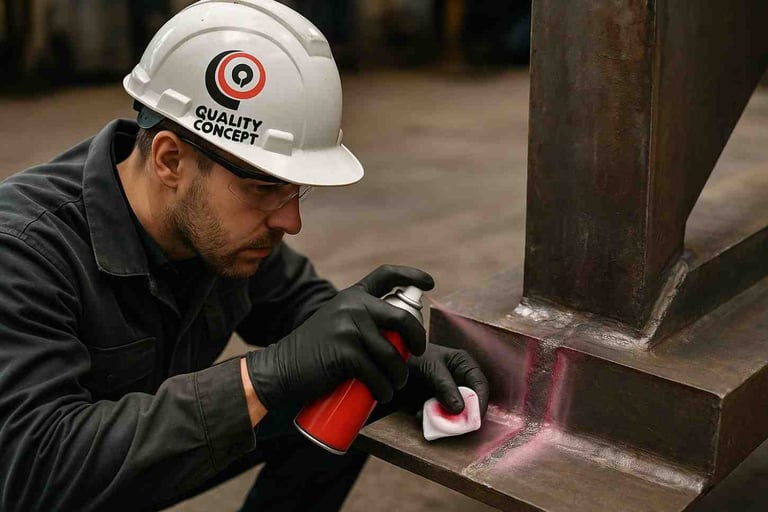

Excess Penetrant Removal – Wipe off surface penetrant without removing from defects.
Application of Developer – Apply developer to draw penetrant out of defects.
Inspection – Inspect under visible or UV light, record results.
Post-Cleaning – Clean the surface to remove chemicals after testing.

Applications of DPT

Aerospace industry (aircraft components).
Automotive industry (engine parts, wheels).
Oil & Gas pipelines.
Power plants (turbine blades, boilers).
Welding inspections (to check cracks, porosity, leaks).

Advantages

Simple, low-cost method.
Works on non-magnetic materials le Testing).
Portable and quick.
Detects very fine cracks.

Limitations

Only detects surface-breaking defects, not subsurface.
Requires clean and smooth surface.
Cannot be used on porous materials (like cast iron).
Chemical handling requires safety measures.
