The Rise of Ultrasonic Phased Array Testing: A Game Changer in Non-Destructive Inspection

Introduction

In the fast-paced world of industrial safety and reliability, the methods of Non-Destructive Testing (NDT) are constantly evolving. Among them, Ultrasonic Testing (UT) has been a trusted workhorse for decades. However, as infrastructure ages and industry demands more precise evaluation, Phased Array Ultrasonic Testing (PAUT) has emerged as a revolutionary technique that significantly enhances detection capabilities.

PAUT combines the principles of ultrasonic sound waves with advanced electronic beam steering, enabling inspectors to see more, see faster, and ensure safety at a higher level than ever before.

What is Phased Array Ultrasonic Testing (PAUT)?

PAUT uses an array of multiple ultrasonic transducers that can be individually pulsed and timed. By adjusting the timing (phase) of these pulses, the ultrasonic beam can be electronically steered, focused, and swept across the test object.

Unlike conventional UT, which uses a single probe and fixed beam angle, PAUT allows inspectors to cover a much wider area without physically moving the probe.

Key Advantages of PAUT

1. Comprehensive Coverage

   • Inspects welds, castings, and structural components more completely.

   • Multiple angles can be tested in one pass.

2. Improved Accuracy

   • Focused beams detect smaller defects with greater precision.

   • Reduces the chances of missing critical flaws.

3. Time Efficiency

   • Faster scanning with less repositioning.

   • Provides real-time imaging and data storage.

4. Data Visualization

   • Produces detailed cross-sectional images (C-scan, B-scan, and S-scan).

   • Enables better reporting and defect analysis.

5. Enhanced Safety

   • Like all NDT methods, PAUT ensures asset reliability without damaging the material.

   • Lower risk of catastrophic failures in critical industries.

Applications of PAUT

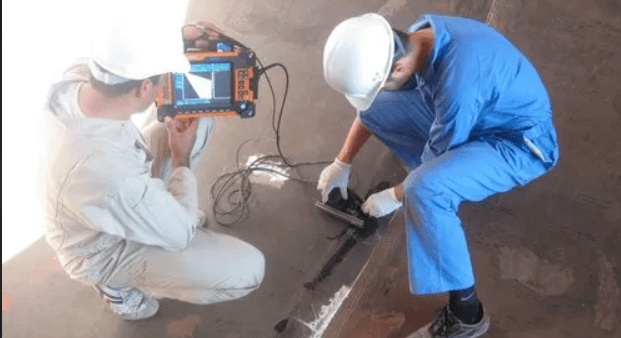

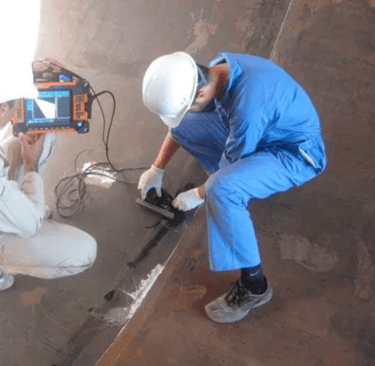

1. Pipeline & Weld Inspection

   • PAUT is widely used in oil & gas pipelines to detect corrosion, cracks, and weld defects.

   • Provides better reliability than radiographic testing without radiation risks.

2. Aerospace Industry

   • Inspects turbine blades, composites, and aircraft structures.

   • Ensures airworthiness by detecting internal flaws in lightweight materials.

3. Power Generation

   • Used in nuclear and thermal plants for pressure vessels, steam lines, and turbine components.

   • Supports compliance with strict safety codes.

4. Automotive & Heavy Engineering

   • Detects subsurface cracks in castings, forgings, and chassis parts.

   • Ensures long-term durability of critical components.

PAUT vs. Conventional UT vs. Radiography

FeatureConventional UTRadiography (RT)Phased Array UTCoverageLimited anglesInternal imagingWide coverage with electronic beam steeringAccuracyModerateHigh (internal)Very high, with image visualizationSafetySafeRadiation risksSafe, no radiationSpeedModerateSlow (film/DRT)Fast, real-timeData StorageLimitedDigital/FilmFully digital, sharable

Challenges in PAUT Adoption

1. High Equipment Cost

   • Advanced probes and phased array systems are more expensive than standard UT.

2. Training Needs

   • Requires skilled technicians who can interpret advanced imaging results.

3. Standardization

   • Codes and standards are still evolving, though organizations like ASME and ISO have introduced PAUT-specific guidelines.

Future of PAUT

As industries embrace digitalization and predictive maintenance, PAUT will play a key role in NDE 4.0 strategies. Integration with robotics and AI will enable fully automated inspections, where phased array data is collected by drones, crawlers, or robotic arms and analyzed instantly by machine learning models.

In the next decade, PAUT is expected to replace a large portion of conventional UT and even challenge radiography in many areas, given its superior safety, speed, and accuracy.

Conclusion

Phased Array Ultrasonic Testing (PAUT) represents the next stage in ultrasonic inspection technology. With its ability to provide real-time, detailed, and accurate insights into material conditions, it offers industries an advanced tool for maintaining safety, compliance, and efficiency.

For companies operating in high-risk sectors like oil & gas, aerospace, power, and infrastructure, adopting PAUT is not just an upgrade—it’s a necessity for staying competitive and ensuring long-term asset reliability.
